Problem

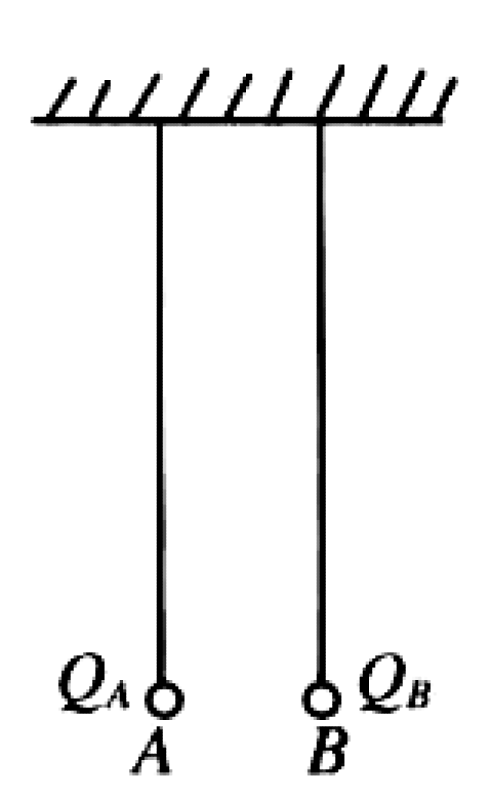

Two small charged balls $A$ and $B$ are suspended from a fixed support by light insulating threads . $Q_A = 2 \times 10^{-8}$ C and $Q_B = -2 \times 10^{-8}$ C; the horizontal distance between the balls is $3$ cm. In the presence of a uniform horizontal external electric field, both balls remain stationary and both suspension threads hang vertically. $A$ is on the left and $B$ is on the right.
- Find the magnitude and direction of the external electric field.
- Find the magnitude and direction of the total electric field at the midpoint of $A$ and $B$.
(1) $E_{\text{ext}} = 2 \times 10^{5}$ V/m, directed from $B$ toward $A$. (2) $E_M = 1.4 \times 10^{6}$ V/m, directed from $A$ toward $B$.
Because each thread hangs vertically, the net horizontal force on each ball is zero. The horizontal forces are (i) the external-field force and (ii) the mutual Coulomb force.
(1) On $A$ (positive): the attractive Coulomb force from $B$ points to the right (toward $B$); the external-field force must balance it and so points to the left. Since $Q_A > 0$, $\mathbf{E}_{\text{ext}}$ also points to the left (from $B$ toward $A$). Equating magnitudes:
$$|Q_A| E_{\text{ext}} = \dfrac{k |Q_A| |Q_B|}{r^2} \;\Longrightarrow\; E_{\text{ext}} = \dfrac{k |Q_B|}{r^2}.$$With $r = 3\ \mathrm{cm} = 3 \times 10^{-2}$ m:
$$E_{\text{ext}} = \dfrac{(9 \times 10^{9})(2 \times 10^{-8})}{(3 \times 10^{-2})^2} = 2 \times 10^{5}\ \mathrm{V/m}, \quad \text{directed from } B \text{ to } A.$$(2) At the midpoint $M$ (distance $r/2 = 1.5\ \mathrm{cm}$ from each ball), the fields from $Q_A$ and $Q_B$ both point in the same horizontal direction --- from $A$ to $B$ (away from the positive charge, toward the negative). Each has magnitude
$$E_{A,M} = E_{B,M} = \dfrac{k |Q|}{(r/2)^2} = \dfrac{4 k |Q|}{r^2} = 4 \times \dfrac{(9 \times 10^{9})(2 \times 10^{-8})}{(3 \times 10^{-2})^2} = 8 \times 10^{5}\ \mathrm{V/m}.$$So the charges contribute $E_{\text{charges}} = 1.6 \times 10^{6}$ V/m from $A$ to $B$, while $E_{\text{ext}} = 2 \times 10^{5}$ V/m points from $B$ to $A$. The total is
$$E_M = 1.6 \times 10^{6} - 2 \times 10^{5} = 1.4 \times 10^{6}\ \mathrm{V/m}, \quad \text{directed from } A \text{ to } B.$$
